Following Relationships and Aggregating

Find nodes by following relationship patterns, connect several databases in one query, and summarize with count, sum and collect. This is where Cypher starts to feel easier than SQL.

Relationship patterns#

MATCH (po:PurchaseOrder)-[:ORDERED_FROM]->(s:Supplier)
RETURN po.po_id, po.status, s.name

Purchase orders come from purchase_order in the ERP, and suppliers from supplier in the ERP. The relationship ORDERED_FROM replaces the join purchase_order.supplier_id = supplier.supplier_id.

Direction#

Every relationship has a defined direction (PurchaseOrder → Supplier). To start from the supplier, reverse the arrow.

MATCH (s:Supplier)<-[:ORDERED_FROM]-(po:PurchaseOrder)
RETURN s.name, collect(po.po_id) AS orders

Several hops — across databases#

This is the question you saw in Chapter 3: shipment (WMS) → purchase order (ERP) → supplier (ERP).

MATCH (sh:Shipment)-[:SHIPS]->(po:PurchaseOrder)-[:ORDERED_FROM]->(s:Supplier)
WHERE sh.delay_days > 0
RETURN sh.shipment_no, sh.ship_status, sh.delay_days, po.po_id, s.name
ORDER BY sh.delay_days DESC

If you return whole nodes, you can view the result as a graph. Give the relationships variables too (r, o) and return them as well.

MATCH (sh:Shipment)-[r:SHIPS]->(po:PurchaseOrder)-[o:ORDERED_FROM]->(s:Supplier)
WHERE sh.delay_days > 3
RETURN sh, r, po, o, s

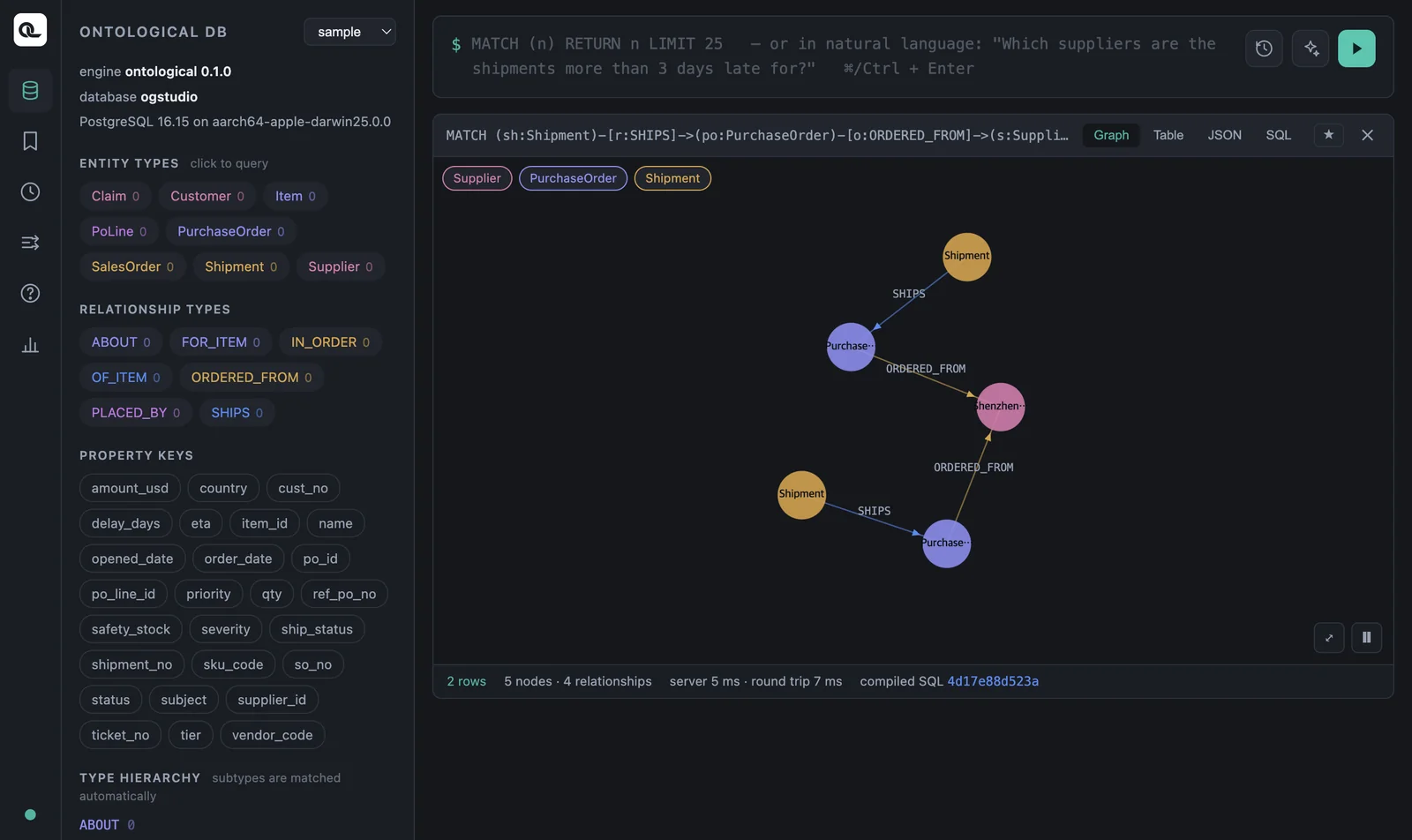

You can see two shipments lead to the same supplier through different purchase orders. This was hard to spot in a table: the delayed shipments are concentrated on one supplier.

Toward the customer#

Inside the CRM, claim → sales order → customer:

MATCH (c:Claim)-[:ABOUT]->(so:SalesOrder)-[:PLACED_BY]->(cu:Customer)
RETURN c.ticket_no, c.severity, c.subject, so.so_no, cu.name

Patterns with two branches#

You can connect patterns by writing several of them separated by commas and using the same variable. To answer “Which suppliers supplied the item in the soldering defect claim?”, you find the item from the claim in the CRM, then connect that item to purchase order lines and suppliers in the ERP. (You need the PoLine you made in Chapter 6.)

MATCH (i:Item)<-[:FOR_ITEM]-(so:SalesOrder)<-[:ABOUT]-(c:Claim),
      (i:Item)<-[:OF_ITEM]-(l:PoLine)-[:IN_ORDER]->(po:PurchaseOrder)-[:ORDERED_FROM]->(s:Supplier)
WHERE c.subject CONTAINS 'soldering'
RETURN DISTINCT i.name, s.name

One query read five kinds of nodes across two databases (CRM and ERP).

Keep rows without a match — OPTIONAL MATCH#

This is the Cypher version of SQL's LEFT JOIN. The row stays even when there is no connected data, and the missing side becomes null.

MATCH (sh:Shipment)
OPTIONAL MATCH (sh:Shipment)-[:SHIPS]->(po:PurchaseOrder)
RETURN sh.shipment_no, po.po_id
ORDER BY sh.shipment_no

Of the 8 rows, only SHP-08 has null for po.po_id. This shipment points to purchase order PO-999, which does not exist in the ERP — a data quality problem we put there on purpose. To pick only the rows with no connected data:

MATCH (sh:Shipment)
OPTIONAL MATCH (sh:Shipment)-[:SHIPS]->(po:PurchaseOrder)
WITH sh, po WHERE po IS NULL
RETURN sh.shipment_no, sh.ref_po_no

The result is SHP-08, PO-999.

Grouping and counting — aggregation#

When RETURN has both aggregate functions and plain values, rows with the same values in the plain columns form one group (you don't write a separate GROUP BY as in SQL).

MATCH (po:PurchaseOrder)
RETURN po.status, count(*) AS n, sum(po.amount_usd) AS total,
       avg(po.amount_usd) AS average, max(po.amount_usd) AS biggest

Open purchase order amount by supplier:

MATCH (po:PurchaseOrder)-[:ORDERED_FROM]->(s:Supplier)
WHERE po.status = 'OPEN'
RETURN s.name AS supplier, count(po) AS open_orders, sum(po.amount_usd) AS open_amount
ORDER BY open_amount DESC

Longest delay by supplier:

MATCH (s:Supplier)<-[:ORDERED_FROM]-(po:PurchaseOrder)<-[:SHIPS]-(sh:Shipment)
RETURN s.name, max(sh.delay_days) AS worst
ORDER BY worst DESC

Shenzhen Goldline PCB 9 days, Ningbo Magnetics 3 days, Daesung Cable 1 day, the rest 0 days.

Splitting into stages — WITH#

WITH splits a query into two stages. The next stage takes over the result of the previous one. Use it when you filter again on an aggregated value (like SQL's HAVING).

MATCH (po:PurchaseOrder)-[:ORDERED_FROM]->(s:Supplier)
WITH s, count(po) AS n
WHERE n >= 2
RETURN s.name, n

Suppliers with two or more purchase orders — Ningbo Magnetics, Shenzhen Goldline PCB and Hanbit Precision (2 each).

Use size() to get the length of a list built with collect().

MATCH (po:PurchaseOrder)-[:ORDERED_FROM]->(s:Supplier)
WITH s, collect(po.po_id) AS pos
RETURN s.name, size(pos) AS n, pos
ORDER BY n DESC

Starting from a list — UNWIND#

UNWIND turns a list into rows. It is handy when you look up several keys at once.

UNWIND ['SHP-02', 'SHP-03'] AS no
MATCH (sh:Shipment {shipment_no: no})
RETURN sh.shipment_no, sh.eta

MATCH (cu:Customer)<-[:PLACED_BY]-(so:SalesOrder)
WHERE so.status = 'OPEN'
RETURN cu.name, collect(so.so_no) AS open_orders

MATCH (po:PurchaseOrder)<-[:SHIPS]-(sh:Shipment)
WITH po, count(sh) AS shipments WHERE shipments >= 2
RETURN po.po_id, shipments

MATCH (cu:Customer)<-[:PLACED_BY]-(so:SalesOrder)<-[:ABOUT]-(c:Claim)
WHERE c.severity = 'HIGH'
RETURN cu.name, so.so_no, c.subject

MATCH (s:Supplier)
OPTIONAL MATCH (s:Supplier)<-[:ORDERED_FROM]-(po:PurchaseOrder)
WHERE po.status = 'OPEN'
RETURN s.name, count(po) AS open_n ORDER BY open_n DESC
